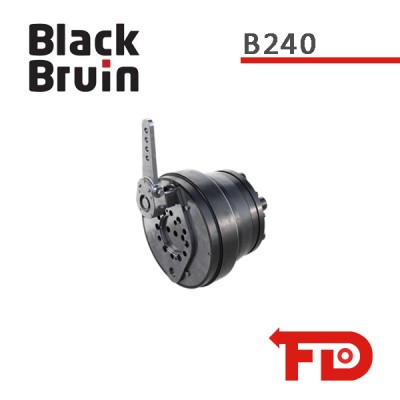

B240-0080-FW20-MRJ40 - B240 MOTOR - BLACK BRUIN
Beschreibung des Modellcodes
- Rahmen: B240
- Hubraum: 800 ccm/U
- Verdrängungssteuerung: Freilaufventil Typ 2 - Geschlossene Freilaufstellung
- Zubehör: Keine Bremse, Armaturen für regelmäßige Schmierung
|
TECHNICAL DATA: |
||||||
|
Rotating direction |
flow direction A to B |
CW |
||||
|
flow direction B to A |
CCW |
|||||
|
Displacement |
at full displacement |
800 |
ccm |
|
|
|
|
at half displacement |
- |
|||||
|
Maximum torque |
theoretical |
4460 |
Nm |
|
|
|
|
with 100 bar |
1270 |
Nm |
|
|
||
|
Drum brake |
Brake torque |
- |
||||
|
Max. lever actuation torque |
- |
|||||
|
Max. operating power |
at full displacement |
35 |
kW |
|
|
|
|
at half displacement |
- |
|||||
|
|
Max. rotating speed |
at full displacement |
185 |
rpm |
|
|
|
at half displacement |
- |
|||||
|
at freewheeling |
600 |
rpm |
|
|
||
|
Max. engaging speed |
(out of freewheeling) |
93 |
rpm |
|
|
|
|
Min. rotating speed |
(constant running) |
2 |
rpm |
|
|
|
|
|
Max. working pressure |
peak pressure |
350 |
bar |
|
|
|
intermittent ¹⁾ |
300 |
bar |
|
|
||
|
Max. case pressure |
average |
2 |
bar |
|
|
|
|
intermittent |
10 |
bar |
|
|
||
|
Pilot pressure for internal valve |
valve engaged |
15 - 30 |
bar ²⁾ |
|
|
|
|
valve released |
0 - 2 |
bar |
|
|
||
|
Max. flow rate |
at full displacement |
150 |
l/min |
|
|
|
|
at half displacement |
- |
|||||
|
Fluid viscosity |
recommended |
25 - 50 |
cSt |
|
|
|
|
minimum |
15 |
cSt |
|
|
||
|
Operating temperature ³⁾ |
recommended |
< 70 |
°C |
|
|
|
|
maximum |
85 |
°C |
|
|
||
|
Weight |
59 |
kg |
|
|
||
|
Tightening torques ⁴⁾ ⁵⁾ |
Hub interface |
383 |
Nm |
M18x1,5 |
10.9 |
|
|
Shaft interface |
330 |
Nm |
M16x2,0 |
12.9 |
||
|
Housing interface |
64 |
Nm |
M10x1,5 |
10.9 |
||
|
Secondary housing interface |
77 |
Nm |
M10x1,5 |
12.9 |
||
