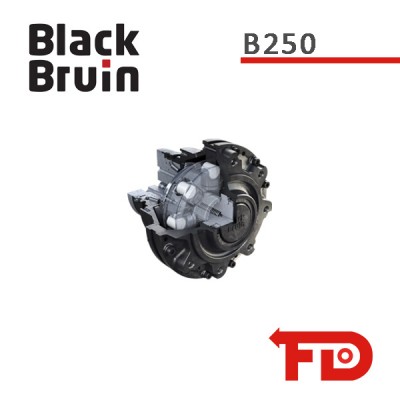

B250-0160-1N00-MRJ50 - MOTOR B250 - BLACK BRUIN
Beschreibung des Modellcodes
- Rahmen: B250
- Hubraum: 1600 ccm/U
- Verdrängungssteuerung: 1-fach, feste Verdrängung
- Zubehör: Trommelbremse 400x80 - 100
|
TECHNICAL DATA: |
||||||
|
Rotating direction |
flow direction A to B |
CW |
||||
|
flow direction B to A |
CCW |
|||||
|
Displacement |
at full displacement |
1600 |
ccm |
|
|
|
|
at half displacement |
- |
|||||
|
Maximum torque |
theoretical |
8910 |
Nm |
|
|
|
|
with 100 bar |
2550 |
Nm |
|
|
||
|
Brake torque ¹⁾ |
13500 |
Nm |
|
|
||
|
Max. operating power |
at full displacement |
50 |
kW |
|
|
|
|
at half displacement |
- |
|||||
|
|
Max. rotating speed |
at full displacement |
125 |
rpm |
|
|
|
at half displacement |
- |
|||||
|
at freewheeling |
500 |
rpm |
|
|
||
|
Max. engaging speed |
(out of freewheeling) |
63 |
rpm |
|
|
|
|
Min. rotating speed |
(constant running) |
2 |
rpm |
|
|
|
|
|
Max. working pressure |
peak pressure |
350 |
bar |
|
|
|
intermittent ²⁾ |
300 |
bar |
|
|
||
|
Max. case pressure |
average |
2 |
bar |
|
|
|
|
intermittent |
10 |
bar |
|
|
||
|
Pilot pressure for internal valve |
valve engaged |
- |
||||
|
valve released |
- |
|||||
|
Max. flow rate |
at full displacement |
200 |
l/min |
|
|
|
|
at half displacement |
- |
|||||
|
Fluid viscosity |
recommended |
25 - 50 |
cSt |
|
|
|
|
minimum |
15 |
cSt |
|
|
||
|
Operating temperature |
recommended |
< 70 |
°C |
|
|
|
|
maximum |
85 |
°C |
|
|
||
|
Weight |
156 |
kg |
|
|
||
|
Max. load capacity |
5,4 |
t |
|
|
||
|
Tightening torques ³⁾ ⁴⁾ |
Hub interface |
540 |
Nm |
M20x1,5 |
10.9 |
|
|
Drum brake interface |
330 |
Nm |
M16x2,0 |
12.9 |
||
|
- |
- |
|||||
|
- |
- |
|||||
