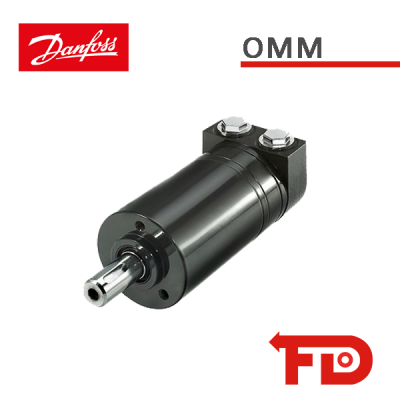

151G0006 - ORBITAL-MOTOR OMM - DANFOSS
151G0006 - ORBITAL MOTOR OMM 32 - DANFOSS
- Wellentyp: Zylindrisch
- Schluckvolumen: 32
- Durchmesser: Ø16
- Anschlußtyp: Endanschluß
- Anschlußgröße: G 3/8
*Bild nur zu Illustrationszwecken.
151G0006
- Mounting Flange
- Standard
- Shaft Style
- M6
- Shaft Size
- Cylindrical
- Shaft Key
- 16 mm ; M6 x 1 tap
- Port Style
- Side port
- Port Dimension
- G 3/8
- Drain Port Style
- Standard
- Drain Port Dimension
- G 1/8
- Painted
- None
- Geometric Displacement
- 31,6 [1.93]
- Max Intel Pressure Cont
- 140 [2030]
- Max Intel Pressure Int
- 175 [2540]
- Max Intel Pressure Peak
- 225 [3260]
