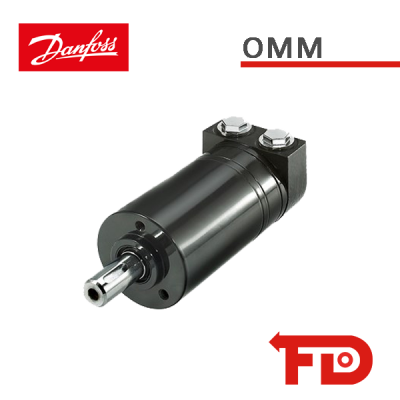

151G0002 - OMM 20 ORBITAL-MOTOR - DANFOSS
151G0002 - ORBITAL MOTOR OMM 20
- Wellentyp: Zylindrisch
- Schluckvolumen: 20
- Durchmesser: Ø16
- Anschlußtyp: Endanschluß
- Anschlußgröße: G 3/8
*Bild nur zu Illustrationszwecken.
151G0002
- Mounting Flange
- Standard
- Shaft Style
- Cylindrical
- Shaft Size
- 16 mm; M6 x 1 tap
- Shaft Key
- A5 x 5 x16 mm (DIN 6885)
- Port Style
- End port
- Port Dimension
- G 3/8
- Drain Port Style
- Standard
- Drain Port Dimension
- G 1/8
- Painted
- None
- Geometric Displacement
- 19.9 [1.22]
- Max Intel Pressure Cont
- 140 [2030]
- Max Intel Pressure Int
- 175 [2540]
- Max Intel Pressure Peak
- 225 [3260]
