CXJAXBN - PILOT TO OPEN CHECK VALVE | SUN HYDRAULICS
Free flow nose to side check valve
Capacity: 160 gpm | Cavity: T-18A
- Control: X
- Cracking Pressure: B
- Seal Material: N

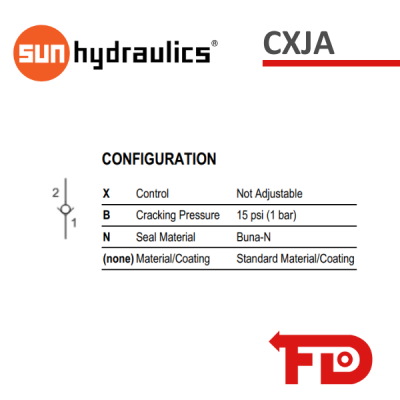

*Image for illustration purposes only
| Cavity | T-18A |
| Series | 4 |
| Capacity | 160 gpm |
| Maximum Operating Pressure | 5000 psi |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min. |
| Valve Hex Size | 1 5/8 in. |
| Valve Installation Torque | 350 - 375 lbf ft |
| Model Weight | 2.06 lb. |
| Seal kit - Cartridge | Buna: 990018007 |
| Seal kit - Cartridge | EPDM: 990018014 |
| Seal kit - Cartridge | Polyurethane: 990018002 |
| Seal kit - Cartridge | Viton: 990018006 |
999CXJAXBN00000
