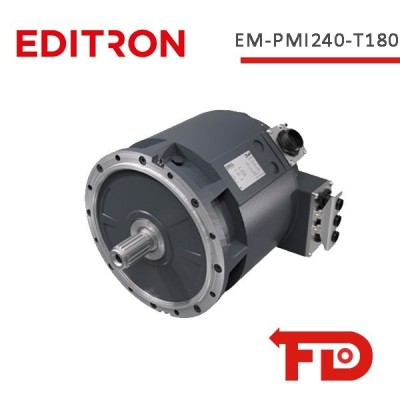

11278301 - ELECTRIC MACHINE EM-PMI240-T180-4400+S2+DE1+RES1 - EDITRON
EM-PMI240-T180
Power range from 48 kW to 114 kW, nominal speed range from 2200 rpm to 8800 rpm and maximum speed up to 9200 rpm.
Our electric machines have been specifically developed for electric or hybrid drive trains in mobile work machines, buses or marine vessels. Designed for demanding applications, our machines are smaller, lighter and more efficient than conventional products on the market.
Features and benefits
- Extremely compact and robust structure: weight 85kg
- Highest efficiency (throughout the operating range) on the market
- Low coolant flow requirements
- Coolant temperature up to +65°C
- IP65 enclosure class (IP67 option)
- The most common connection interface for S45 series open circuit hydraulic pumps
- Grease lubricated bearings as a standard
- HV cable interface done with connector
11278301
