CSAZXXN - SHUTTLE VALVE | SUN HYDRAULICS

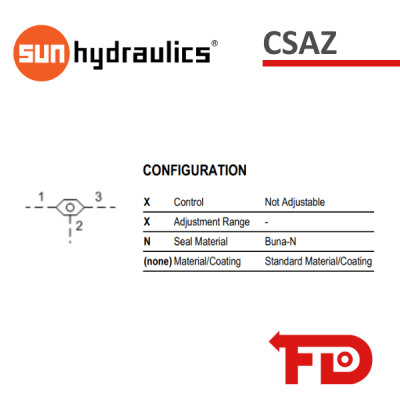

Single ball shuttle valve with signal at port 2
Capacity: 1.25 gpm | Cavity: T-163A
- Control: X
- Adjustment range: X
- Seal material: N
*Image for illustration purposes only
| Cavity | T-163A |
| Series | 0 |
| Capacity | 1.25 gpm |
| Maximum Operating Pressure | 5000 psi |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 drops/min. |
| Valve Hex Size | 3/4 in. |
| Valve Installation Torque | 20 - 25 lbf ft |
| Model Weight | 0.19 lb. |
| Seal kit - Cartridge | Buna: 990163007 |
| Seal kit - Cartridge | Polyurethane: 990163002 |
| Seal kit - Cartridge | Viton: 990163006 |
999CSAZXXN00000
