RDDALAN - RELIEF VALVE| SUN HYDRAULICS
Direct-acting relief valve
Capacity: 95 L/min. | Cavity: T-10A
Control: L
Adjustment range: A
Seal Material: N

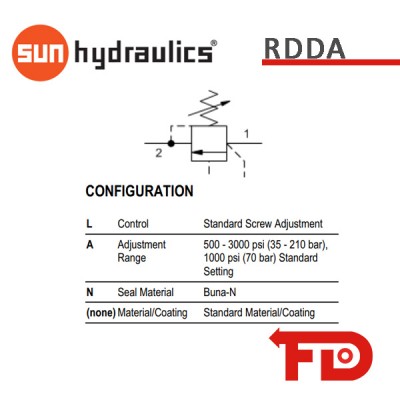

* image for illustration purposes only
| Cavity | T-10A |
| Series | 1 |
| Capacity | 25 gpm |
| Maximum Operating Pressure | 5000 psi |
| Factory Pressure Settings Established at | 4 gpm |
| Maximum Valve Leakage at Reseat | 10 drops/min. |
| Response Time - Typical | 2 ms |
| Reseat | >90% of setting |
| Adjustment - No. of CW Turns from Min. to Max. setting | 6 |
| Valve Hex Size | 7/8 in. |
| Valve Installation Torque | 30 - 35 lbf ft |
| Adjustment Screw Internal Hex Size | 5/32 in. |
| Locknut Hex Size | 9/16 in. |
| Locknut Torque | 80 - 90 lbf in. |
| Model Weight | 0.37 lb. |
| Seal kit - Cartridge | Buna: 990310007 |
| Seal kit - Cartridge | EPDM: 990310014 |
| Seal kit - Cartridge | Viton: 990310006 |
999RDDALAN00000
