CAGLLGN - COUNTERBALANCE VALVE|SUN HYDRAULICS

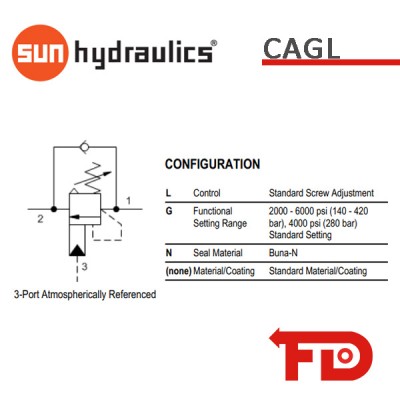

2:1 pilot ratio, vented counterbalance valve - atmospherically referenced

Capacity: 60 gpm | Cavity: T-17A

Control: L
Functional setting range: G
Seal material: N

*Image for illustration purposes only

Cavity	T-17A
Series	3
Capacity	60 gpm
Pilot Ratio	2:1
Maximum Recommended Load Pressure at Maximum Setting	4615 psi
Maximum Setting	6000 psi
Factory Pressure Settings Established at	2 in³/min.
Maximum Valve Leakage at Reseat	5 drops/min.
Check Cracking Pressure	25 psi
Adjustment - No. of CCW Turns from Min. to Max. Setting	5
Operating Characteristic	Standard
Reseat	>85% of setting
Valve Hex Size	1 1/4 in.
Valve Installation Torque	150 - 160 lbf ft
Adjustment Screw Internal Hex Size	5/32 in.
Locknut Hex Size	9/16 in.
Locknut Torque	80 - 90 lbf in.
Model Weight	1.65 lb.
Seal kit - Cartridge	Buna: 990117007
Seal kit - Cartridge	Polyurethane: 990117002
Seal kit - Cartridge	Viton: 990117006
